powerbi 'unable to connect to data source undefined' đĄ
Update - it appears Microsoft have finally fixed the error messages in PowerBI when using the latest version of the PowerBI on-premises data gateway. If you find yourself with this error message in 2024, make sure you update your on-premises data gateway and try a dataset refresh again, if the answer is SSL it will tell you.
This one took me fucking ages to work out mid-2022, and it nearly stung me again today while I was supposed to be on annual leave.
PowerBI is actually toxic to work with. Vague errors, vague documentation, and public forum support with self-proclaimed âgurusâ closing issues while being confidently incorrect. So basically ChatGPT.
AnywayâŚ
the situation
hey Tom, none of the PowerBI dashboards are refreshing
Analysts were panicking as disgruntled stakeholders were coming into poorly made cups of tea and out of date data.

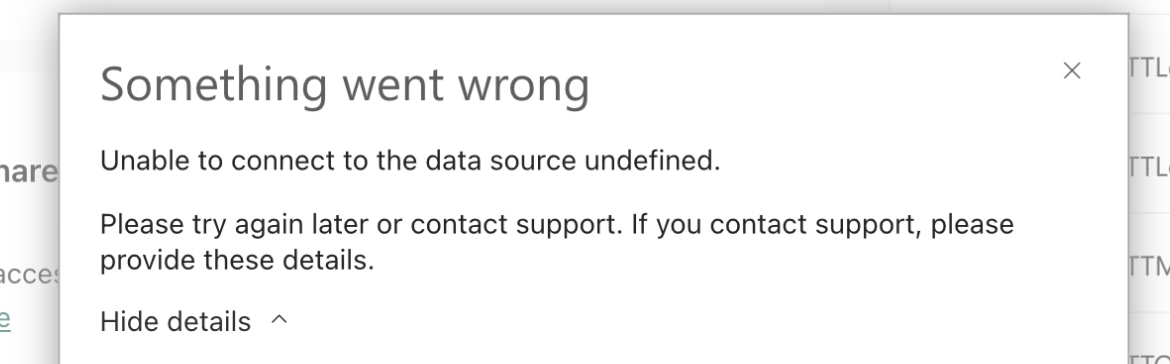

When the 7:30-9:00 staggered dataset refreshes had started they had all failed one by one with the following error:
Needless to say, this is a pretty terrible error message, and it has many meanings.
This post is just throwing yet another meaning to this error message, Iâm afraid.
investigation đľď¸
Our organisation, and many like us I assume, use the following configuration for our PowerBI reporting:
Data Warehouse -> Reporting Layer -> PowerBI On-premises data gateway -> PowerBI.com
So, it only made sense to troubleshoot in the order of the report generation stages.
After ruling out issues with our ETL, checking the change log on Friday to make sure IT hadnât made any breaking changes, and using the Gateway setup page on PowerBI.com to test the gateway was reporting as online, I fired up our gateway server.
lesson one - you need more service accounts
The PowerBI on-premise data gateway needs to be signed in with a Microsoft account, which has a PowerBI License and enough access to manage gateways.
It turns out my line manager had used his personal work account to originally set this up, and the data gateway manager requires regular authentication to manage settings, or even debug. This meant that I had to sign into the application as well, set up a new gateway, and create a database connection on PowerBI.com to troubleshoot.
For the record â this does not impact your existing gateway; however it makes sense to create or use an existing service account, give it a PowerBI license, and use it to manage the gateway. In case of the bus factor.
a needle in a haystack
Once signed in, I ensured I could reproduce the issue and attempted a manual refresh of a dataset linked up to this new gateway.
Now that was done, I could generate a zip file of the gateways logs using the client. The file nomenclature in the produced zip is straightforward, look for âerrorâ and the ISO8601 representation of the date.
Within this file, laid the culpritâSSL certificates.
Weâve had this problem a few times on two different installs of SQL Server, 2008 R2 and 2019 Standard.
To fix this, launch the SQL Server Configuration Manager from your SQL Server instance and expand SQL Server Network Configuration.
Right-click Protocols for instance name, and then select Properties.
Choose the Certificate tab.
In my case, the valid certificate had just been deselected, so reselecting the valid certificate (you can check which one is valid if they share names by clicking âDetailsâ) did the trick, but you can also import a certificate from this window.
Finally, restart the SQL Server service.
and thatâs how i got a day off back in lieu
I hate PowerBI, and it wasnât even PowerBIâs fault. I hope this helps someone, or maybe me in the future, because this counts as documentation(?).
